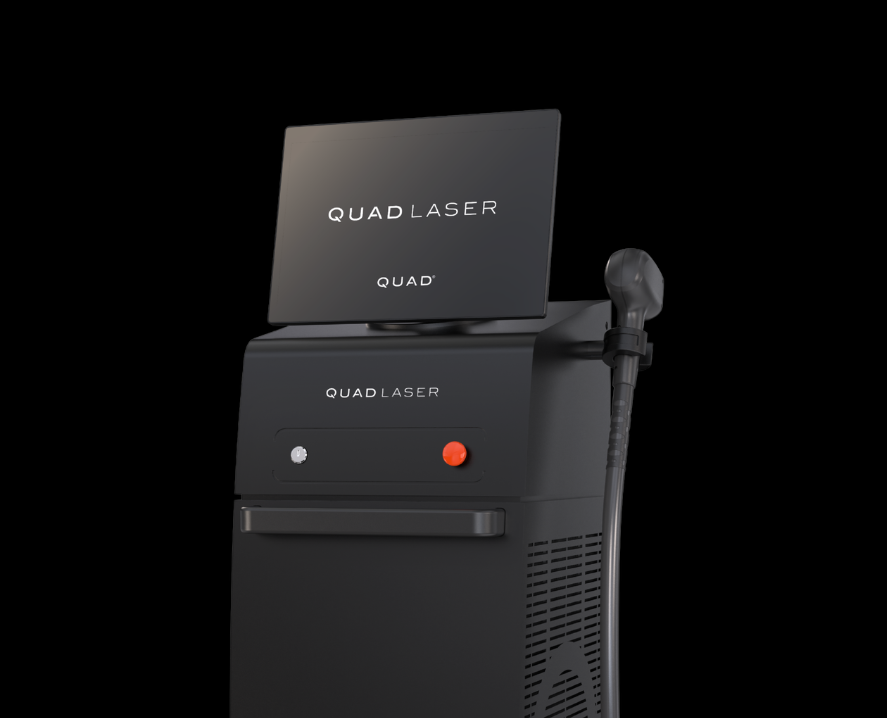

The QUAD Laser is an innovative solution that combines the efficacy with proven benefits of four wavelengths in one lightweight applicator, harnessing outstanding power to safely and effectively treat all skin types, including tanned skin. Its large spot size and sophisticated cooling technology make treatments considerably faster and painless, benefiting both patients & professionals.
Download Product GuideThe QUAD Laser combines 4 wavelengths in one applicator for the ultimate ‘all-rounder’ laser device that is capable of treating all hair and skin types.
Alexandrite is ideal for most skin tones and hair types, notably lighter skin and fine hair, since its wavelength maximises the melanin chromophore’s ability to absorb high energy levels. Because of its increased superficial penetration targeting the Bulge of the hair follicle, the 755nm wavelength is optimal for removing hair that is superficially embedded.
This is a widely used wavelength because its combination of high average power with deep penetration, large spot size, and fast repetition rate makes for quick, effective treatments. The 808nm wavelength is well-suited for darker skin tones, including tanned skin, because of its low absorption rate for melanin. It is most effective on the arms, legs, and face due to its moderate tissue depth, allowing it to target the Bulge and Bulb of the hair follicle.
At a wavelength of 940nm, the lower, less intense peak absorption of the chromophore haemoglobin is exploited. Haemoglobin is present in the papilla, a large bulb at the base of the hair follicle that contains the blood supply and essential nutrients for hair formation. It enables a further heat reaction in that deep channel, preventing further development and resulting in the necrosis and loss of hair. This wavelength’s improved absorption and moderate penetration depth make it ideal for treating all skin and hair types, particularly darker skin.
Due to its lower melanin absorption, the 1064 YAG wavelength is excellent for darker skin types. This wavelength also delivers the deepest hair follicle penetration, targeting the Bulb and Papilla while treating deeply ingrained coarse hair such as the scalp, bikini area, and underarms. It raises the thermal profile of the whole treatment, resulting in more effective hair removal and enhanced outcomes since it avoids the skin’s natural pigmentation.
Providing you with the option to choose from 3 different spot sizes to suit your clinic and patients’ needs:
Small Spot Size:
12mm x 12mm
Medium Spot Size:
12mm x 25mm
Large Spot Size:
25mm x 31mm
The QUAD Laser is an innovative solution that combines the efficacy with proven benefits of 4 wavelengths in one lightweight applicator, harnessing an outstanding 4,000 watts of power to safely and effectively treat all hair colours and all skin types, including tanned skin. Its large spot size and sophisticated cooling technology make treatments considerably faster and painless, benefiting both patients & professionals.
What sets the QUAD Laser apart from other hair removal systems is our breakthrough applicator delivering four highly effective wavelengths simultaneously (755nm, 808nm, 940nm, & 1064nm). As a result, it can target various tissue depths and structural features inside the hair follicle, enhancing treatment efficacy and obtaining the best possible results.
The QUAD Laser harnesses an outstanding 4,000 watts of power, while the applicator can deliver an impressive 1,600 watts to achieve exceptional results owing to its increased energy density.
Our cutting-edge applicator with an effective 12mm x 20mm spot size makes treatments much faster, maintaining greater productivity and a better experience for your clients.
Easily treat hard-to-reach areas such as the upper lip, glabella, nose and ears. The attachable 6mm round (diameter) facial tip can also be used to accurately treat areas that require precision, such as the beard line and eyebrows.
Our intelligent sub-zero sapphire cooling tip maintains a continuous cool temperature. This decreases the risk of epidermal damage while preserving heat in the dermis where hair follicles are treated, ensuring a more comfortable and highly effective treatment for your patients.
The QUAD Laser can treat all skin types and hair colours safely, including tanned skin, owing to the four wavelengths used and its unique progressive heating and quick pulse delivery mechanism. This efficiently destroys the hair follicle and inhibits re-growth while avoiding tissue damage.
The applicator’s lightweight and ergonomic design makes treating patients easier and more comfortable.
You can feel confident that the QUAD Laser will stand the test of time with its substantial 20 million shot count, enabling you to treat as many patients as you require freely.
Our Quad Laser is capable of delivering a repetition rate of 10Hz, meaning it can emit up to 10 pulses per second. A faster repetition rate means higher heat built up in the dermis, and 10Hz is the safest and most effective rate to operate without causing damage to surrounding areas.
With a modern, sizeable 15′ LED touch screen that has pre-set specifications, you can benefit from a more user-friendly interface. The easy-to-manoeuvre 180-degree rotatable screen enhances work freedom and screen visibility.
The QUAD Laser has been meticulously designed by us in the UK, with no compromise on specification. The technical capabilities and slick modern design go hand in hand to ensure you can benefit from a device that is a cut above the rest.
4 Wavelength Diode Laser
Alexandrite 755nm
Diode 808nm
Near-Infrared 940nm
YAG 1064nm
4000 watts
1600 watts
2-120 ms (adjustable)
2 — 100 J/cm2
1-10 Hz
0 -3°C
12mm x 20mm
6mm (round)
Sweeping Motion
Stop-and-Shoot
All Hair Colours
All Skin Types, Including Tanned Skin
15inch LED Rotatable Screen
220-240V | 50/60 Hz
130cm H | 37.5cm W | 41cm D
57kg
UKCA | CE | ISO 13485: 2016 | TUV SUD
The QUAD Laser is perfect for those who want to introduce an advanced laser hair removal system into their business, with the capabilities of effectively treating all hair and skin types.
